Prodigit is a manufacturer of high quality power test equipment. With more than 20 years of experience in the electronic power testing industry. We are able to provide cost effective solutions for your requirements. Custom configurations are also available. Please contact us to discuss your power testing requirements.

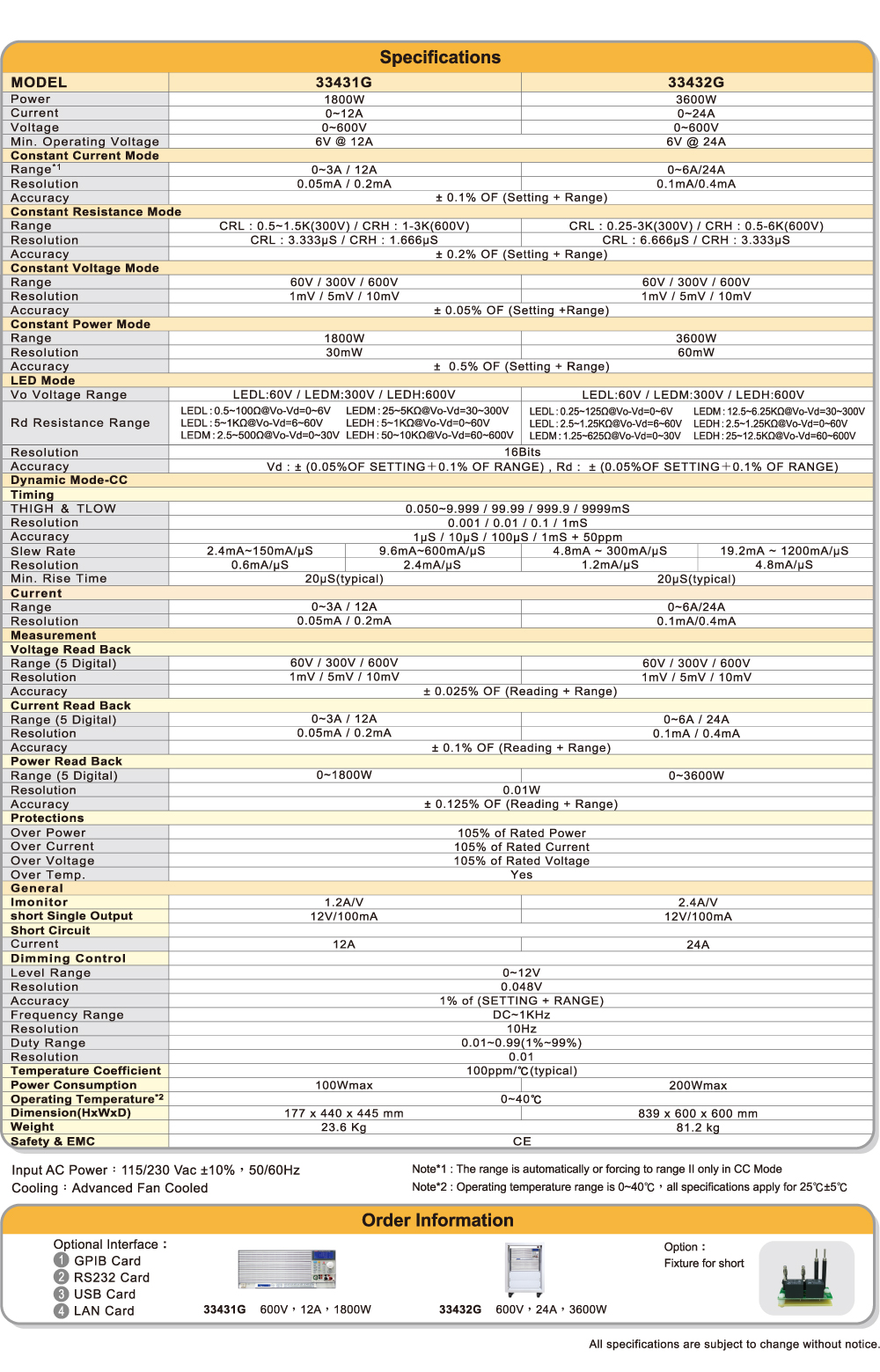

SpecificationsFeaturesDescriptions

33432G Series High Power DC Electronic Load 600V,24A,3600W

click to enlarge

Features

  LED mode load for LED Power Driver test.
CC, CR, CV, CP, LED and Dynamic mode.
Simulate LED Forward Bias Voltage (Vd) and Resistance (Rd).
Fast Response for PWM dimming test.
Built-in dimming control signal for PWM dimming test.
Short circuit test by external relay (built-in short relay driver circuit).
5 digital V / A / W Meter.
Protections against V, I, W, and ℃.
Optional Interface:GPIB、RS232、USB、LAN.
New waveform generator plug in model 9923 adds user programmable battery dischargecurrent waveform simulation to Prodigit DC Loads



33431G

33432G



600V, 12A, 1800W

600V, 24A, 3600W



33431g Series High Power DC Electronic Load 600V, 12A, 1800W
3351F Series High Power DC Electronic Load 600V, 24A, 3600W
