3610F Series Single Output Power Supply Tester Up to 8 pcs UUT can be tested simultaneously (need 8 units of 3610D)

click to enlarge

Click here to view Specifications

Description

The 3610F is ideally suited for confirming electronic component specifications and functions for a broad range of power supply applications. Including: single output power supplies, mobile phones, battery chargers, adapters for notebook computers, PDA's digital cameras, scanners, ADSL modems, printers, and electronic dictionaries.

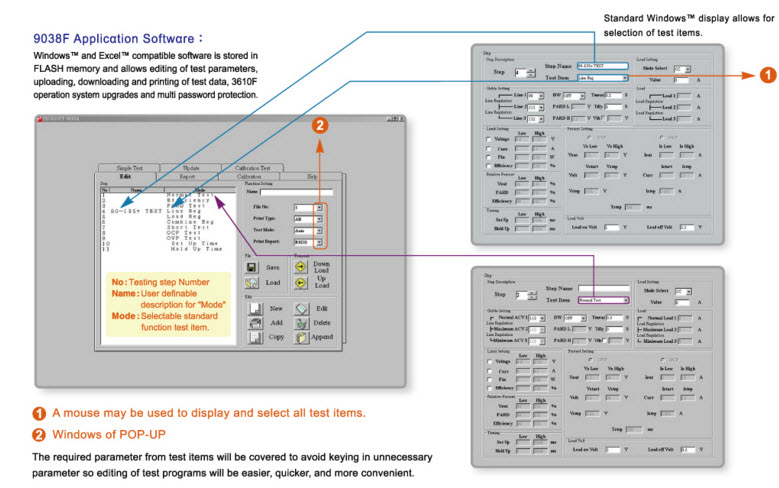

User friendly WindowsTM version 9038F software provides custom operation interface than allows editing of rest parameters, uploading, downloading and printing of test data, 3610F operating system upgrades, and multi password protection

The optional 9901 Integrated Twin Test Fixture was designed for production applications. It integrates a dual U.U.T. fixture. START/STOP control key, PASS/TESTING/FAIL indicator and FAIL alert with adjustable volume. The dual text fixture allows continual testing which increases throughput volume. One unit will be testing while the user removes a tested unit and replaces it with a new unit to be tested.

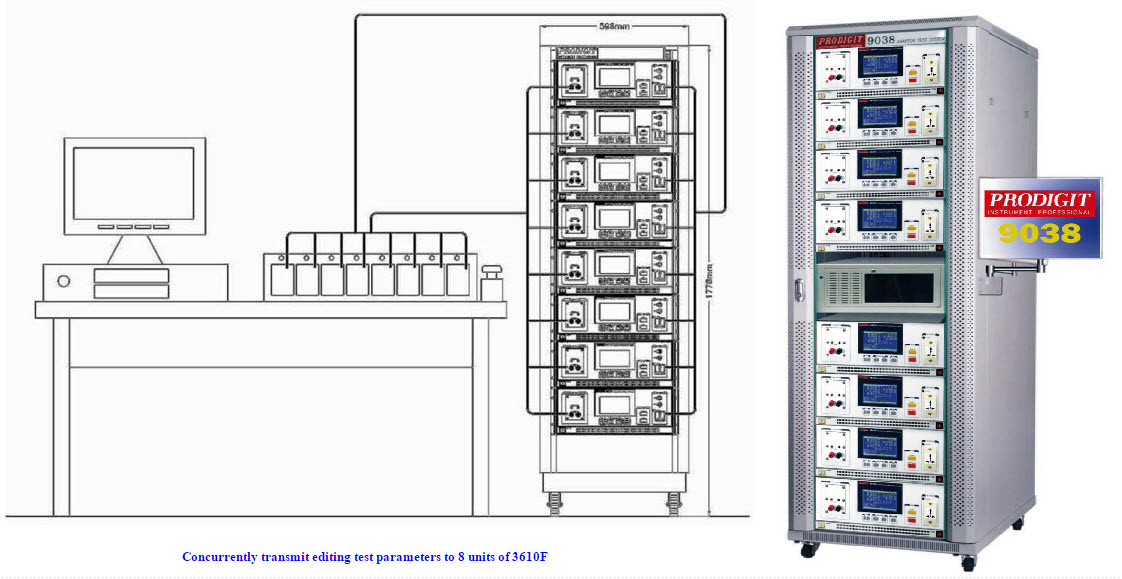

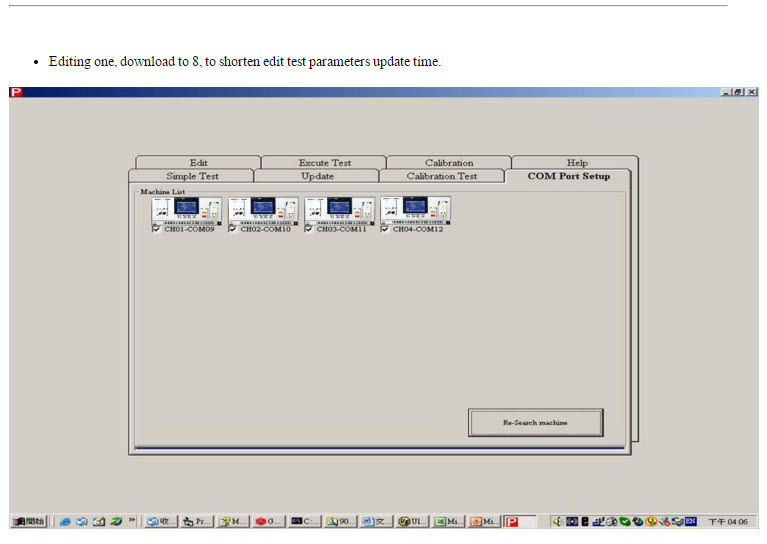

Max. configuration for 8 pcs U.U.T. test simultaneously needs 8 sets of 3610F. The test values and result can be displayed at the same time to have highly test efficiency.

Click to Enlarge
