Prodigit is a manufacturer of high quality power test equipment. With more than 20 years of experience in the electronic power testing industry. We are able to provide cost effective solutions for your requirements. Custom configurations are also available. Please contact us to discuss your power testing requirements.
ApplicationsFeaturesDescriptions

36360A Series Compact High Power DC Electronic Load
1000V, 600A, 60KW

click to enlarge

Click here to view 36360A Series Introduction

Feature


With parallel function maximum power up to 320KW
Maximum up to 8 units master / slave parallel control
5 digit V/A/W Meter
High-speed measurement and communication transmission
Large LCD Display、setting values can be adjusted by rotary knob or push button
Voltage、Current and Watt value can be displayed simultaneously
Capable for Power Factor Correction (PFC) Test. (for 600V,1000V models)
OCP、OPP test function automatically
Power ON status can be set

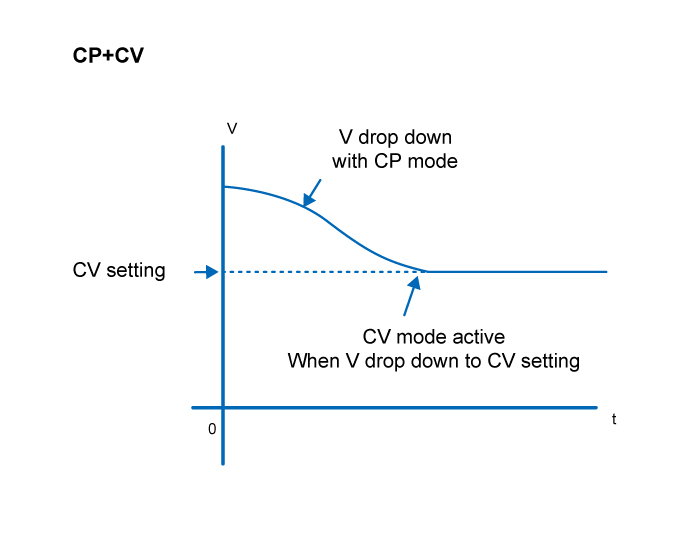

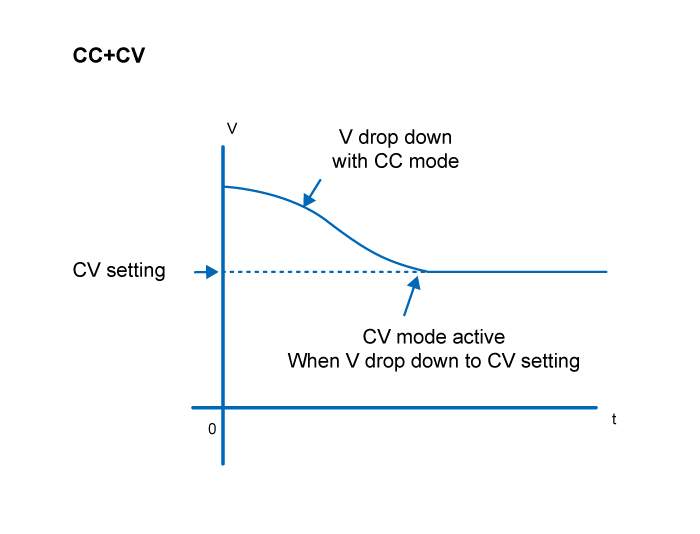

CC, CR, CV, CP, CC+CV, CP+CV, Dynamic and Short operation mode
SHORT time setting
Protections against I,W,°C and over-voltage alert
Voltage meter display the polarity positive(”+”)or negative(”-”)is selectable
Short, OCCP and OCDP function test for BMS protection board is provided (option)
Option:Emergency Stop and Analog Control are available
Optional Interface : GPIB、RS232、USB、LAN
0.7V @ 1000A is on Static condition, and the starting voltage must be greater than 5V, if on Dynamic condition that is 5V @ 1000A
New waveform generator plug in model 9923 adds user programmable battery dischargecurrent waveform simulation to Prodigit DC Loads

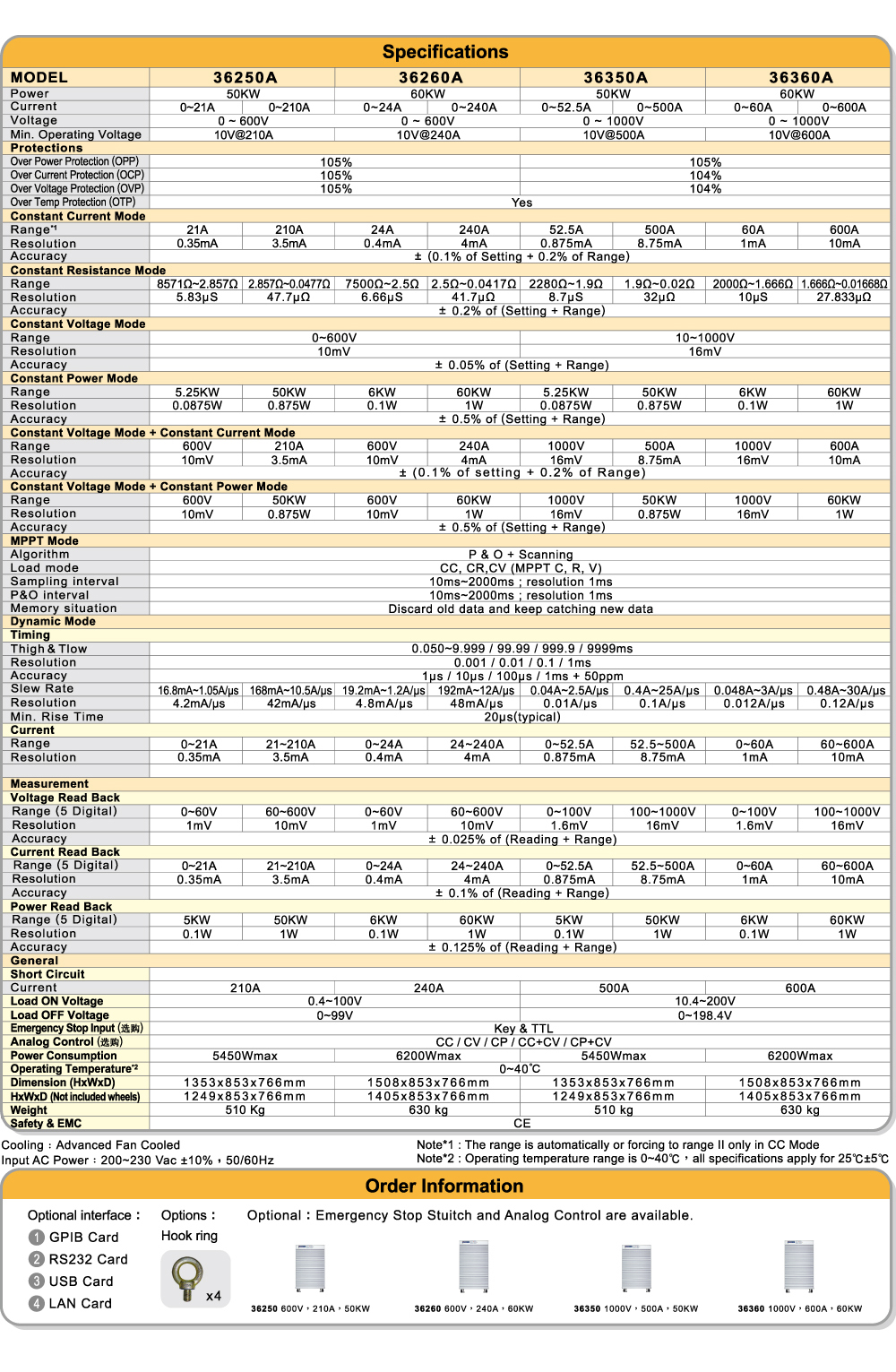

36250A

36260A

36350A

36360A



600V, 210A, 50KW

600V, 240A, 60KW

1000V, 500A, 50KW

1000V, 600A, 60KW




36250A Series Compact High Power DC Electronic Load 600V, 210A, 50KW
36260A Series Compact High Power DC Electronic Load 600V, 240A, 60KW
36350A Series Compact High Power DC Electronic Load 1000V, 500A, 50KW
36360A Series Compact High Power DC Electronic Load 1000V, 600A, 60KW
