Prodigit is a manufacturer of high quality power test equipment. With more than 20 years of experience in the electronic power testing industry. We are able to provide cost effective solutions for your requirements. Custom configurations are also available. Please contact us to discuss your power testing requirements.
ApplicationsFeaturesDescriptions

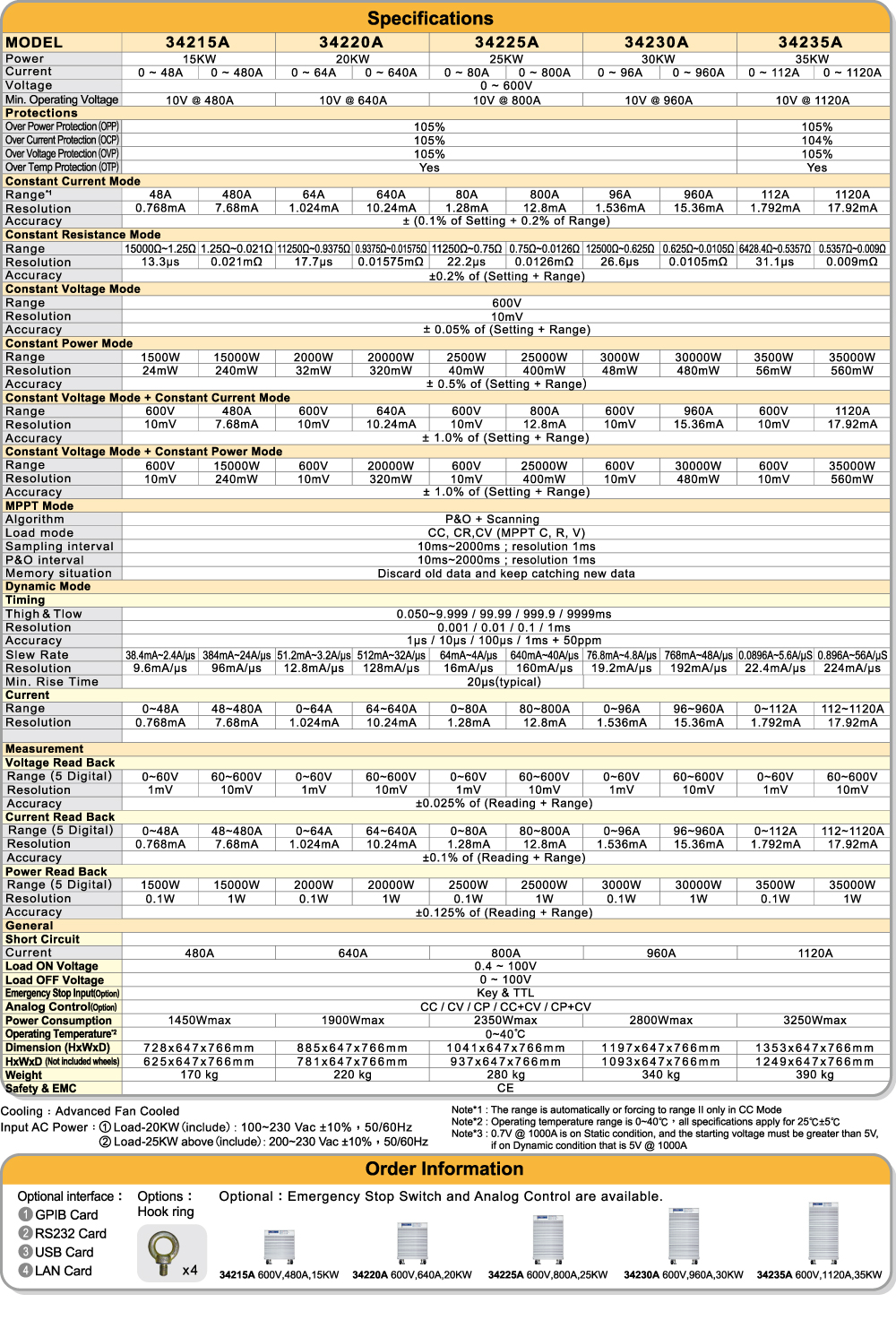

34215A Series Compact High Power DC Electronic Load
600V, 480A, 15KW

click to enlarge

Click here to view 34215A Series Introduction

Feature


With parallel function maximum power up to 320KW
Maximum up to 8 units master / slave parallel control
5 digit V/A/W Meter
High-speed measurement and communication transmission
Large LCD Display、setting values can be adjusted by rotary knob or push button
Voltage、Current and Watt value can be displayed simultaneously
Capable for Power Factor Correction (PFC) Test. (for 600V,1000V models)
OCP、OPP test function automatically
Power ON status can be set
CC, CR, CV, CP, CC+CV, CP+CV, Dynamic and Short operation mode
SHORT time setting
Protections against I,W,°C and over-voltage alert
Voltage meter display the polarity positive(”+”)or negative(”-”)is selectable
Short, OCCP and OCDP function test for BMS protection board is provided (option)
Option:Emergency Stop and Analog Control are available
Optional Interface : GPIB、RS232、USB、LAN
0.7V @ 1000A is on Static condition, and the starting voltage must be greater than 5V, if on Dynamic condition that is 5V @ 1000A
New waveform generator plug in model 9923 adds user programmable battery dischargecurrent waveform simulation to Prodigit DC Loads



34105A

34110A

34115A

34120A



60V, 1000A, 5KW

600, 1000A, 10KW

600V, 1000A, 15KW

60V, 1000A, 20KW





34125A

34130A

34135A

34140A

60V, 1000A, 25KW

60V, 1000A, 30KW

60V, 1000A, 35KW

60V, 1000A, 40KW




34205A

34210A

34215A

34220A



600V, 160A, 5KW

600V, 320A,10KW

600V, 480A, 15KW

600V, 640A, 20KW




34225A

34230A

34235A

34240A



600V, 800A, 25KW

600V, 960A, 30KW

600V, 1120A, 35KW

600V, 1280A, 40KW




34305A

34310A

34315A

34320A



1000V, 50A, 5KW

1000V, 100A, 10KW

1000V, 150A, 15KW

1000V, 200A, 20KW




34325A

34330A

34335A

34340A



1000V, 250A, 25KW

1000V, 300A, 30KW

1000V, 350A, 35KW

1000V, 400A, 40KW



34105A Series Compact High Power DC Electronic Load 60V, 1000A, 5KW
34110A Series Compact High Power DC Electronic Load 60V, 1000A, 10KW
34115A Series Compact High Power DC Electronic Load 60V, 1000A, 15KW
34120A Series Compact High Power DC Electronic Load 60V, 1000A 20KW
34125A Series Compact High Power DC Electronic Load 60V, 1000A 25KW
34130A Series Compact High Power DC Electronic Load 60V, 1000A 30KW
34135A Series Compact High Power DC Electronic Load 60V, 1000A 35KW
34140A Series Compact High Power DC Electronic Load 60V, 1000A 40KW
34205A Series Compact High Power DC Electronic Load 600V, 160A 5KW

34210A Series Compact High Power DC Electronic Load 600V, 320A 10KW
34215A Series Compact High Power DC Electronic Load 600V, 480A 15KW
34220A Series Compact High Power DC Electronic Load 600V, 640A 20KW
34225A Series Compact High Power DC Electronic Load 600V, 800A 25KW
34230A Series Compact High Power DC Electronic Load 600V, 960A 30KW
34235A Series Compact High Power DC Electronic Load 600V, 1120A 35KW
34240A Series Compact High Power DC Electronic Load 600V, 1280A 40KW
34305A Series Compact High Power DC Electronic Load 1000V, 50A 5KW
34310A Series Compact High Power DC Electronic Load 1000V, 100A 10KW
34315A Series Compact High Power DC Electronic Load 1000V, 150A 15KW
34320A Series Compact High Power DC Electronic Load 1000V, 200A 20KW
34325A Series Compact High Power DC Electronic Load 1000V, 250A 25KW
34330A Series Compact High Power DC Electronic Load 1000V, 300A 30KW
34335A Series Compact High Power DC Electronic Load 1000V, 350A 35KW
34340A Series Compact High Power DC Electronic Load 1000V, 400A 40KW
