Prodigit is a manufacturer of high quality power test equipment. With more than 20 years of experience in the electronic power testing industry. We are able to provide cost effective solutions for your requirements. Custom configurations are also available. Please contact us to discuss your power testing requirements.

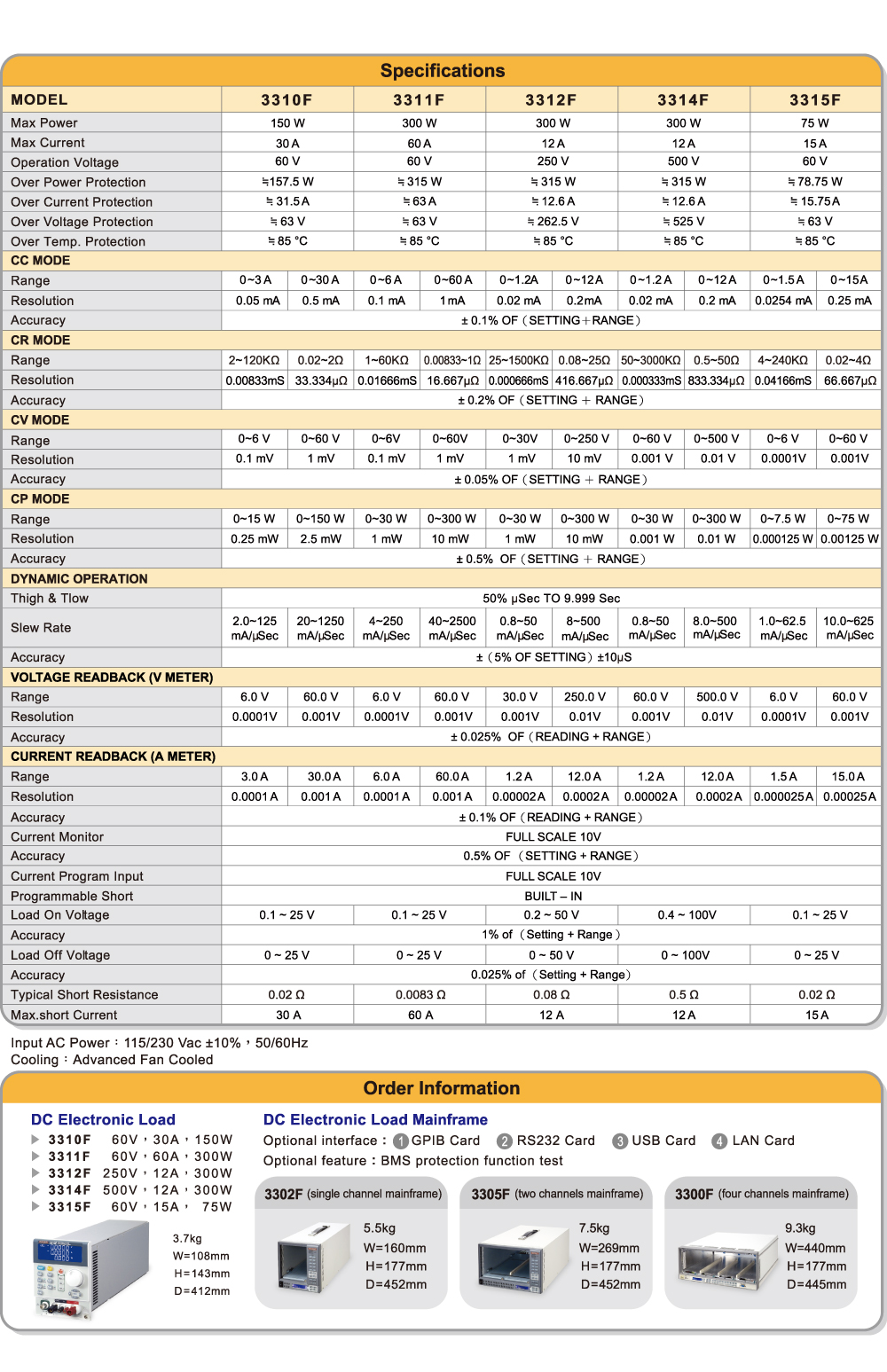

3311F Series (60V, 60A, 300W) DC Electronic Load

click to enlarge


  5 digital V/A/W Meter
Power ON status value can be set
High-speed measurement and communication transmission
Flexible CC. CR, CV, CP, Dynamic and Short operation modes
V.A.W. values can be displayed simultaneously
SHORT time setting and SHORT_VH, SHORT_VL setting function
LCD big display
Protections against V, I, W, and C
Setting values can be adjusted by rotary knob or push button
Voltage meter display the polarity positive (”+”)or negative (”-”)is selectable
OCP, OPP test function
Can be configured in 3302F [single channel mainframe],3305F [two channels mainframe] or 3300F [four channels mainframe],and the mainframe with 150 sets Store/Recall memory
SYNC. Load ON function
Optional Interface : GPIB, RS232,USB,LAN






60V, 30A, 150W

60V, 60A, 300W

250V, 10A, 300W

500V, 10A, 300W

60V, 15A, 75W

3310F 60V, 30A, 150W DC Electronic Load
3311F 60V, 60A, 300W DC Electronic Load
3312F 250V, 10A, 300W DC Electronic Load
3314F 500V, 10A, 300W DC Electronic Load
3315F 60V, 15A, 75W DC Electronic Load
