Prodigit is a manufacturer of high quality power test equipment. With more than 20 years of experience in the electronic power testing industry. We are able to provide cost effective solutions for your requirements. Custom configurations are also available. Please contact us to discuss your power testing requirements.

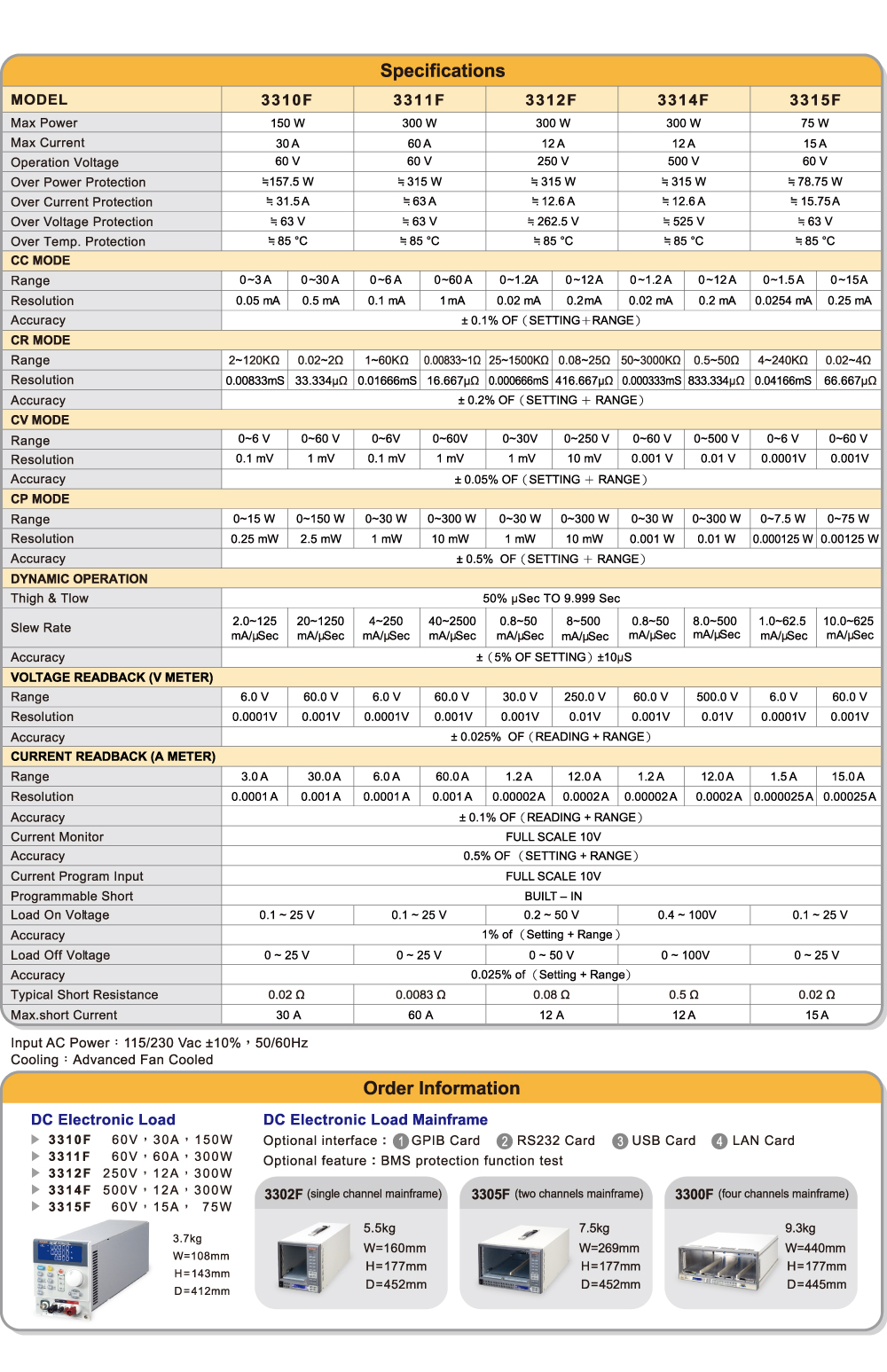

SpecificationsFeaturesDescriptions

3315F Series (60V, 15A, 70W) DC Electronic Load

click to enlarge

Features

  5 digital V / A / W Meter
High-speed measurement and communication transmission
V.A.W. values can be displayed simultaneously
Large LCD Display、setting values can be adjusted by rotary knob or push button
OCP 、 OPP test function
Must be configured in 3302F〔single channel mainframe〕3302F mainframe provides the NTC simulation test function(Option)、3305F〔two channels mainframe〕or 3300F〔four channels mainframe〕and the mainframe with 150 sets Store / Recall memory
Power ON status value can be set
Flexible CC. CR, CV, CP, Dynamic and Short operation modes
SHORT time setting and SHORT_VH, SHORT_VL setting function
Protections against V, I, W, and °C
Voltage meter display the polarity positive(”+”)or negative(” - ”)is selectable
SYNC. Load ON function
Optional Interface : GPIB、RS232、USB、LAN
Support MPPT CC, CR, CV test function for solar panel
Function test for BMS protection board is provided (option)
New waveform generator plug in model 9923 adds user programmable battery discharge current waveform simulation to Prodigit DC Loads

3310F

3311F

3312F

3314F

3315F

60V, 30A, 150W

60V, 60A, 300W

250V, 10A, 300W

500V, 10A, 300W

60V, 15A, 75W


3310F 60V, 30A, 150W DC Electronic Load
3311F 60V, 60A, 300W DC Electronic Load
3312F 250V, 10A, 300W DC Electronic Load
3314F 500V, 10A, 300W DC Electronic Load
3315F 60V, 15A, 75W DC Electronic Load
